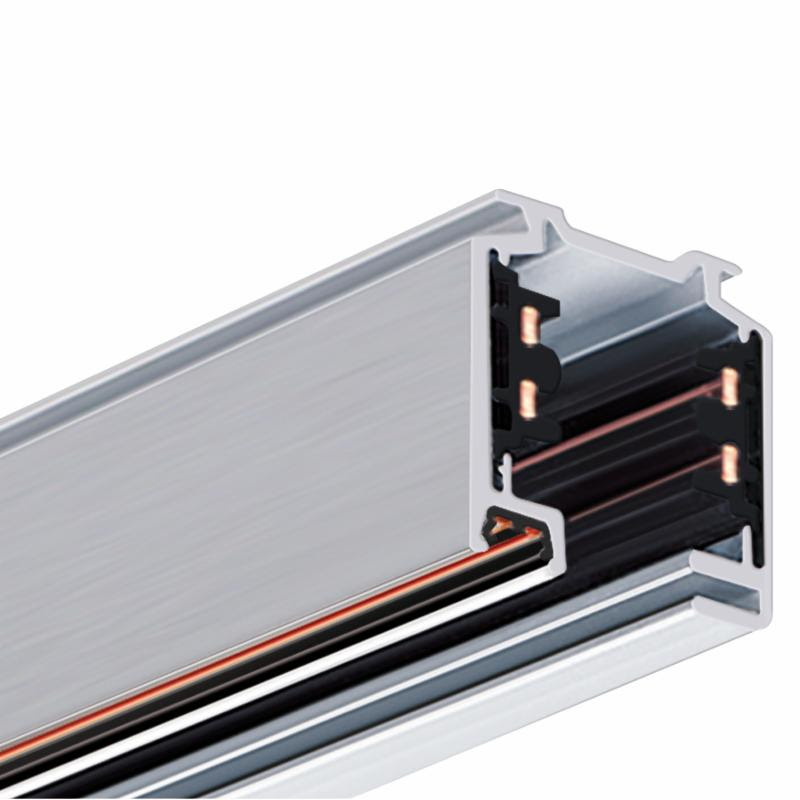

ConTech Lighting is pleased to announce the addition of Data Track to our specification grade track system offering. The Data Track is constructed of a heavy duty extruded aluminum profile with two independent switchable circuits. The Data Track also features an embedded data bus which provides the ability for 1-10V dimming with our Data Track enabled LED luminaires; the Stealth, O3 and the O2 Mini.
A complete offering of feeds, connectors and suspension components are available to complete any Data Track installation.
E2CD
2-Circuit/2-Neutral Data Track
- 7-Conductor surface track for two circuits plus data bus.
- Data Track consists of two (2) 120V/20A circuits. Maximum power rating of each circuit is 2400W: 20A @ 120V, 60HZ. NEC allows 80% of full capacity or 1920W.
- Track can support up to 22lbs of weight per foot when properly supported.
- Easily field cuttable with a standard saw, no cutting back or bending back of conductors necessary.
- Track has pre-punched slotted holes. The track system can be integrated into a building management system.
- The data information can be picked up anywhere along the track via data bus equipped adapters.
- Beside the DALI protocol the data bus can be used for DMX, 0-10V or KNX protocols.
- Adapters without data bus contacts can be used in tracks with data bus. Data functionality is not available in those cases.
- The track described above can be used for three circuit applications.
- All ConTech track luminaires must have an ETL (2C/2N 120V) adapter installed.
- For Data Bus functionality, the -DB track adapter must also be specified.
- For 120V only.
